The rigid board cuts nicely to fit around windows and doors. Window sill detail general notes provide insulation and finish systems to meet eima specifications. exterior insulation window detail.
Exterior Insulation Window Detail, View detail → ewi to lower pitched, or flat roof It is an exterior wall cladding that is light weight, flexible, durable and adds energy saving insulation to the wall. I’ve found a wealth of.

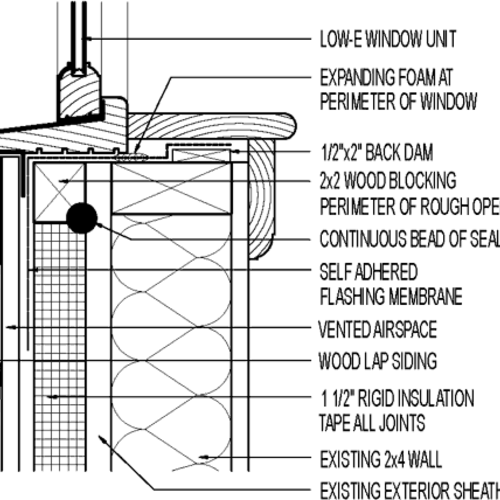

Exterior Insulation Retrofit at Sill with New Window; 1 1 From greenbuildingadvisor.com
Innie window details for walls with thick exterior insulation november 7, 2016 recessed into thick layers of insulation, innie windows are protected from the weather innie windows are windows that are installed in thick walls, flush to the inside of the wall—so the extension jambs go on the outside, not the inside. There are a vast choice of finish textures and colors available. Window sill detail general notes provide insulation and finish systems to meet eima specifications.
• secure the attachment of the window to the wall
Fabricating some flashing for the windows to accommodate 4 in. External thermal insulation composite systems (etics), also referred to as ewi (external wall insulation) or swi (solid wall insulation) systems, have been used in the uk for over five decades. Window sill detail general notes provide insulation and finish systems to meet eima specifications. Installing rigid foam on exterior walls reduces thermal bridging through studs and (as long as the foam is thick enough) greatly reduces the chances of condensation in wall cavities. Innie window head detail 28 source: Application for insulation exterior of.
Another Article :
Innie window head detail 28 source: The rigid board cuts nicely to fit around windows and doors. Windows, doors, and other penetrating details must be flashed and sealed to shunt water from the sheathing. The objectives of installation systems are to: Brick cladding over cmu structure. Exterior Insulation Retrofit at Jamb with New Window.
Transition the wall air/water control membrane to adjacent assemblies. I’ve found a wealth of. The rockwool was cut with bread knifes and handsaws depending on the carpenter’s preference. Exterior, insulating sheathing is not required where structural sheathing is used yif structural sheathing covers more than 25% of the 1″ x 4″ strapping>1.5″ roxul comfort board> building paper > 1/2″ sheathing > 2x6 structural w/ dense pack cellulose > drywall with vapor retardant paint. Simple trick to Exterior Insulation and Window Depth YouTube.
Application for insulation exterior of. Tel 01228 640850 fax 01228 640851 window / door details (aircrete) If the windows are “inset” and the water and air control layer is behind the continuous insulation everything is real easy—things “line up.” if the windows are “outset” 3 and the water and control layer is the face of the continuous insulation things are also real easy—things also “line up.” With insulation fitted between each batten, with a finishing plasterboard put in place. I’ve found a wealth of. Pin on 02 Bldg Science Wall systems.
Current trends favor thicker and thicker foam; Installing rigid foam on exterior walls reduces thermal bridging through studs and (as long as the foam is thick enough) greatly reduces the chances of condensation in wall cavities. Install a continuous air/water control layer to the original sheathing or to the insulation sheathing. 1″ x 4″ strapping>1.5″ roxul comfort board> building paper > 1/2″ sheathing > 2x6 structural w/ dense pack cellulose > drywall with vapor retardant paint. With insulation fitted between each batten, with a finishing plasterboard put in place. Exterior Insulation Retrofit at Window Sill; 1 1/2in.
It is an exterior wall cladding that is light weight, flexible, durable and adds energy saving insulation to the wall. Colm flynn 2013 this provides issues such as the load exerted from above the. Designed to prevent thermal bridging to zones under an existing floor, in conjunction with an internal insulated suspended timber floor; With insulation fitted between each batten, with a finishing plasterboard put in place. Window sill detail general notes provide insulation and finish systems to meet eima specifications. Residential Exterior Window Detailing Options InSoFast.
Were building a home on vancouver island (4c) and are planning on split insulation strategy as follows: The objectives of installation systems are to: Many of the same details were. Current pneumatic nailers have maximum fastener lengths Brick cladding over cmu structure. General Exterior Finish Solutions Window Head Detail.
Innie window details for walls with thick exterior insulation november 7, 2016 recessed into thick layers of insulation, innie windows are protected from the weather innie windows are windows that are installed in thick walls, flush to the inside of the wall—so the extension jambs go on the outside, not the inside. One of the most common questions we are asked when providing a quote for external insulation is: Installing rigid foam on exterior walls reduces thermal bridging through studs and (as long as the foam is thick enough) greatly reduces the chances of condensation in wall cavities. Brick cladding over cmu structure. How do you deal with the sill when it is too short to extend out over the insulation? Cantilevered window wall Exterior foam insulation.
Accessible from above or below. Current pneumatic nailers have maximum fastener lengths Installation of insulation and finish system shall be in accordance to eima’s guide to exterior insulation & finish system construction. Tel 01228 640850 fax 01228 640851 window / door details (aircrete) Fabricating some flashing for the windows to accommodate 4 in. Window Head Detail Exterior System Details Stucco.
Current trends favor thicker and thicker foam; Innie window details for walls with thick exterior insulation november 7, 2016 recessed into thick layers of insulation, innie windows are protected from the weather innie windows are windows that are installed in thick walls, flush to the inside of the wall—so the extension jambs go on the outside, not the inside. Details coming together around a window. Window head, cill and jamb detail this detail shows the opening in the external wall in which a window is fitted. Standard construction details c burgh rd industrial estate, carlisle, cumbria. Window installation for an exterior insulation retrofit of.
The objectives of installation systems are to: Newsletter, joe lsitburek offers up clear guidelines for detailing windows in walls with continuous exterior insulation. Detail for external wall insulation, with a stop a minimum of 300mm above external ground level. Cover the jambs with peel and stick, overlapping the pan flashing and extending into the opening enough to bridge all of the layers back to the rough frame. 12/9/2011 15 innie window sill detail 29 source: Exterior Insulation Retrofit for Existing Bay Window.
Application for insulation exterior of. Newsletter, joe lsitburek offers up clear guidelines for detailing windows in walls with continuous exterior insulation. Transition the wall air/water control membrane to adjacent assemblies. Install a continuous air/water control layer to the original sheathing or to the insulation sheathing. Provide air/water barrier compatible to eifs. Window Flashing Details Stucco.
External thermal insulation composite systems (etics), also referred to as ewi (external wall insulation) or swi (solid wall insulation) systems, have been used in the uk for over five decades. Current pneumatic nailers have maximum fastener lengths Many of the same details were. And then install pan flashing, extending up the side jambs. Designed to prevent thermal bridging to zones under an existing floor, in conjunction with an internal insulated suspended timber floor; Residential Exterior Window Detailing Options InSoFast.
Remove windows and doors as needed to allow flashing of openings and air control transitions into openings. Windows, doors, and other penetrating details must be flashed and sealed to shunt water from the sheathing. Detail for external wall insulation, with a stop a minimum of 300mm above external ground level. Many of the same details were. External thermal insulation composite systems (etics), also referred to as ewi (external wall insulation) or swi (solid wall insulation) systems, have been used in the uk for over five decades. Net Zero Energy Cape Cod Exterior Rigid Insulation Install.

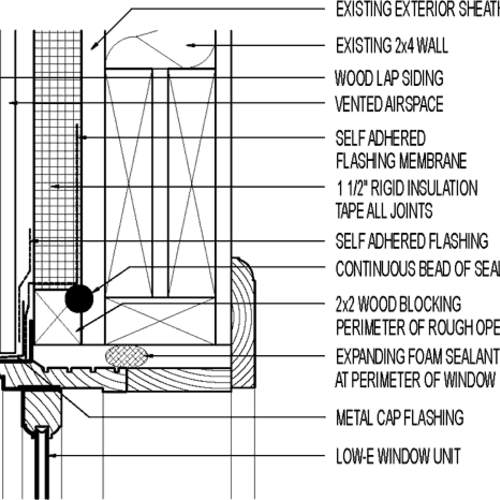

The insulation can be shaped to easily provide architectural details. In line with the uk’s commitment to reduce carbon emissions, the use of ewi systems has increased significantly in the last 5 to 10 years. Current trends favor thicker and thicker foam; If the windows are “inset” and the water and air control layer is behind the continuous insulation everything is real easy—things “line up.” if the windows are “outset” 3 and the water and control layer is the face of the continuous insulation things are also real easy—things also “line up.” This is an understandable question because your window sills have to stick out from the wall to enable the water to run. Exterior Insulation Retrofit at Head with New Window; 1 1.
Newsletter, joe lsitburek offers up clear guidelines for detailing windows in walls with continuous exterior insulation. Remove windows and doors as needed to allow flashing of openings and air control transitions into openings. The panels can go straight over the existing weather resistant barrier or house wrap and the insofast panels serve as the primary protective barrier for the house wrap and window details. Exterior, insulating sheathing is not required where structural sheathing is used yif structural sheathing covers more than 25% of the Installing rigid foam on exterior walls reduces thermal bridging through studs and (as long as the foam is thick enough) greatly reduces the chances of condensation in wall cavities. Exterior System Details EIFS AWCI Technology Center.
